Network Notepad Freeware Edition
Help |
The Tool Bar
|
Back and Forward buttons. These are used to move back
and forth through previously loaded diagrams. |
|
Auto Align Button. When selected, objects are
automatically aligned horizontally or vertically with
the previously pasted object. |
|
Open a network diagram file. |
|
Send to Back, Bring to Front Buttons. These change the
order that objects are drawn. |
|
Save the current file. |
|
Connection Points Button. Selects between linking to a
single point on an object or linking to any part of an
object. |
|
Print Diagram |
|
Link Button. Toggles link mode on and off. Left click on
objects to link them. |
|
Object Libraries Button. This button opens the current
Object Library and displays available objects to use in
the diagram. |
|
Link Selection Drop Down List. |
|
Cut button. Delete selected objects and place on
clipboard. |
|
Unlink Button. Removes links between selected objects |
|
Copy Button. Copies selected objects to the Network
Notepad clipboard. |
|
Zoom Out. |
|
Paste Button. Switches to paste mode. Left Click will
paste objects from the Network Notepad clipboard or
selected from the Object Library. |
|
IP Addresses Button. Toggles the display of IP
Addresses. |
|
Delete Button. Delete selected objects. |
|
Programmable function buttons. |
|
Text Mode Button. Toggles text mode on and off. Left
click will position a text cursor at the current mouse
position. |
|
Exit Button. |
Navigating
To pan around diagram, hold down the right mouse button and
move the mouse (The mouse pointer needs to be position over the
background of the diagram).
To follow a link to another diagram - Right click the object
and select "Goto next diagram". Objects which link to other
diagrams have a blue caption.
The tool bar back and forward buttons may also be used to
jump to the previous or next diagram.
Adding Objects To A Diagram
Click the Object Libraries Button
to display the current Object Library.
Drag and drop Objects from the Library to the diagram.
You may also paste Library objects by selecting the object
from the library and then closing or minimising it.
Point the cross hair where you want to place the objects.
Click the Paste Button again to finish pasting.
To automatically hide the Object Library whenever you select
a new object, enable "Auto Hide" in the setup dialogue.
Tip: Double right click the
background to toggle the last used mode (Paste, Text, or Link)
off and on.
Cutting And Deleting Objects From A Diagram
Highlight the objects you wish to cut or delete by left
clicking them and then hit the Cut Button
to place them on the clipboard. Alternatively hit the Delete
Button
to remove them completely.
Selecting/ Deselecting Single/ Multiple
objects
Objects need to be selected (Red highlight) and deselected
for cutting and pasting. To select an object, left click on it.
To select or deselect multiple objects at once, drag a
"rubber band" around them with the left mouse button.
You must start selection with the mouse pointer positioned
over a blank piece of background.
To select or unselect additional objects, hold down the CTRL
key while selecting. To select no objects from the main ring
choose Edit and then Select None, or type CTRL-A.
Clicking the background of the diagram also resets all
selections.
Aligning Objects
To align objects, select them and choose Format and Align
Horizontal or Align Vertical from the Ring Menu.
When pasting objects and drawing links, objects and lines
are automatically aligned if the Auto Align button
is selected.
Resizing Objects
Use Shift + and Shift - to adjust the size of
the current object.
From the ring menu select Format > Resize Mode and then either
Both, Horizontal or Vertical to set the quick resize function.
Objects can also be resized in the Object
Properties
form.
Moving and Copying Objects
To move objects, first select the
objects you wish to move (Red highlight) and then hold down the
Shift Key
while dragging one of the objects to the new position.
To copy objects, select them and then click then Copy Button.
Click the Paste Button
to enter Paste Mode and the position the cross hair and left
click to paste copies of the objects. To finish pasting, click
the Paste Button
again.
Nudging Objects
To nudge all selected objects hold the Shift and press
one of the cursor keys.
Changing The Name (Or IP Address) Of An
Object
To change the name of an object or change it's IP
address, Double Left Click on current name or IP address and
type in the new details. Press Enter to complete.
You may also change these details by right clicking on the
object and selecting "Properties". See
Object Properties
below.
When specifying IP addresses, you may include additional
information, eg. subnet mask, following a "/" character. Eg.
192.168.55.2 /28 or 192.168.55.2 /255.255.255.240. The "/"
character and any text which follows is ignored when using the
programmable function buttons.
You may insert a Carriage Return in an Object or IP Label using
Shift + Enter.

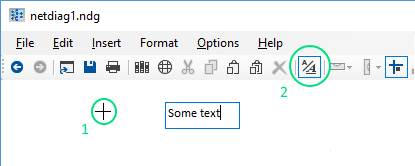

Adding Text To A Diagram
|
Click the Text Mode Button
and then Left Click when the cross hair
1
is where you want the text to appear. The Text Mode
button will indicate you are in Text Mode
2.
To finish entering text, click the Text Mode button
again or press the Escape key.
Tip: Double right click the background to toggle the
last used mode (Paste, Text, or Link) off and on.
|
|
Editing Text
To Edit text in text box, double click on it.. The Text Mode
button will indicate you are in Text Mode.
Press ESC to finish editing the text, or click the text mode
button on the tool bar.
To delete a Text Box, double click it and then hit
backspace. Press
ESC or click the text mode button to complete.
Changing Text Font And Colour
To change the font or colour of a Textbox on the diagram.,
right click the text and select Font or Colour.
To change the current default font or colour, from the ring
Menu select Format and then either Text Font or Text Colour
You may also alter the text font or colour whilst editing
text.
Moving Text
To move text, hold the SHIFT key down and drag the text.
|
|
Adding Float Text To Objects
Information can be displayed when the pointer is held
over an object for a few seconds.
To Add or Edit Float Text, right click the object
and select Edit Float Text.
Enter text into the Float Text entry box and hit
escape when complete.
|

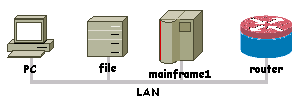

Adding Horizontal And Vertical Backbones
|
To insert a horizontal or vertical backbone, select
Insert from the Ring Menu and then either horizontal
or vertical backbone.
Position the cross hair roughly where you want the
centre of the backbone to be and click the left mouse
button.
Click the Paste Mode
button to finish adding backbones.
|
|
Resizing And Moving Backbones
To resize a backbone, position the cursor over either end
then hold the left mouse button down to drag the backbone larger
or smaller.
To move a backbone, hold the shift key down whilst dragging
the backbone to a new position.
Alternative Backbone Styles
|
Use Format Link Styles to change the width of the
"Backbone" link style to 16.
|
|
Linking An Object To A Backbone
To link an object to a backbone, click on the link mode
button
and then join the backbone to the object. It does not matter
what Link Type has been selected when doing this.
Hiding IP Addresses
To Reveal or Hide IP addresses, toggle the IP Address Button .
Using The Programable Function Buttons
The programmable function buttons
can be programmed to execute external applications. The
application may be supplied with the IP address or hostname of
the most recently clicked object. F1 for instance is
pre-programmed to Telnet to the IP address of the most recently
clicked object.
The 5 programmable function buttons are also present in the
pop up menu when you right click an object. See the
Setup
section for information on configuring the Programmable Function
Buttons.
Printing
To print a diagram use the print button on the toolbar. If
you have a large canvas size the objects will appear small when
printed. Drag the canvas smaller or reduce the Canvas width and
height in the Diagram Properties form to make the objects to
appear larger when printed.
The Zoom Out button on the toolbar functions similar to a Print
Preview function and enables you to see how the page will look
when printed.
The ratio of height to width of the Canvas also determines
whether the page is printed in landscape or portrait mode. If
you ensure the ratio setting shown in the Diagram Properties
form is 1.414 then the Canvas will match an A4 page in landscape
mode. A ratio of 0.707 matches an A4 page in portrait
mode.
|

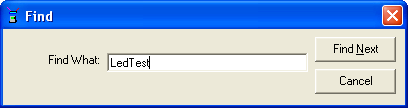

Searching Diagrams
To search a diagram, press CTRL-F and enter some text
to find.
Use F3 to Find Next.
Tip: Network Notepad Files
are stored as plain text. Use Windows "Search for Files"
to scan through all your diagrams and find what you are
looking for.
|
|
|
|
